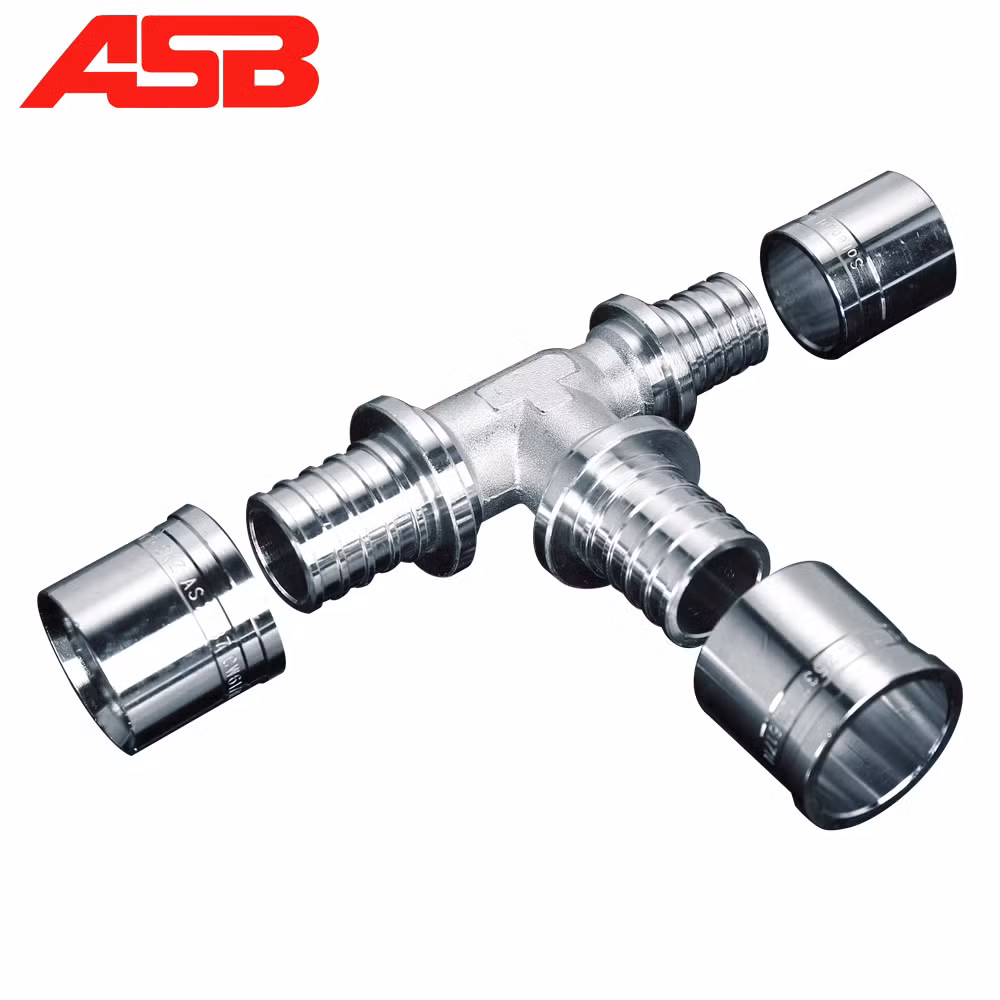

Full Sizes Brass Press Water Heating Pipe Fitting Press Female Threaded Tee Fitting and Coupling Fittings for Pex Al Pex Pipes Product Description Product Description ASB brass press fittings are one of ASB's fitting series, made of good quality brass(CWN617N or Hpb58-3) and assembled by professional workers.

It is popularly used in Hot- Cold Water systems and Heating Systems. It can match all the standard Multilayer Pipes from the market.

Product Structure Body(Material:HPb58-3 Brass/CW617N) Sleeve(Material:304 SS) O-ring(Material:EPDM) Pipe(which to be connected to the fitting) Plastic Stop/Sleeve Seat(Material:HDPE) Product Parameters Main Technical Parameters Property Unit Value Working Temperature ºC 0-95 Long-term Working Temperature ºC 60-75 Working Pressure Mpa 1.0 Burst Pressure Mpa 7(for 16mm) Hydrostatic Strength 2.2MPa, 95ºC, 1h No leak Hot and Cold Water Circulation 1.0±0.05.

Mpa, 20-95ºC, 5000times No leak Certifications ISO9001:2008, ISO14001: ISO21003, SKZ, CE, GOST-R, WATERMARK Installation Instructions Installation Instructions 1.Cut the pipe 2.Put the pipe into the bottom of the sleeve 3.Use the press tool to press 4.Done Company Profile Company profile ASB specializes in the production of water supply piping systems and heating systems.

The main products include PP-R pipes and fittings, aluminum-plastic PPR pipes, glass fiber PP-R pipes, aluminum-plastic composite pipes and fittings, HDPE pipes and fittings, PEX/PERT floor heating. Pipe, floor heating manifold s , brass ball valve and all kinds of brass parts.

ASB has passed the ISO9001 quality management system and ISO1400 environmental management system in the same industry through standardized management, strict testing and excellent service.

At the same time, the company strictly controls the quality, and the products have passed the certifications of EU CE, Germany SKZ and Russia, Ukraine, Poland and other different standards.

Products are exported to more than 90 countries and regions around the world including Germany, Britain, Poland, Russia, Mexico, Argentina, the Middle East , Southeastern Asia and Africa.

Our Product PPR Pipes and fittings, Pex-al-pex pipes, brass fittings, brass ball valve, manifold Production Equipment 18 plastic pipe production line;45sets Plastic fittings injection machines;230sets Automatic CNC machine;different kinds of testing equipment. Production Mark
