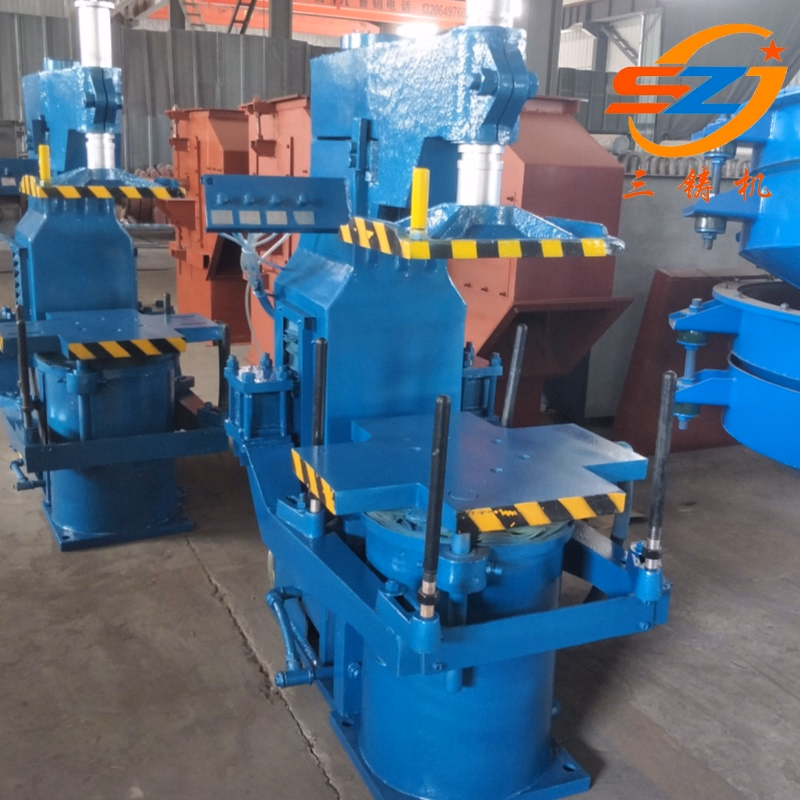

Product Parameters Model Maximum sad box size:mm Table size:mm Working air pressure:Mpa Pressure strength:Kgf Shock load:Kg Compaction stroke:mm Die start stroke:mm Distance from press head to table:mm Z143 500×400×200 560× Z145 500×450×200 620× Z146 600×500×200 700× Z147 750×650×300 850× Z148 1000×800×300 900× Z149 1200×1000×350 1170× Z ×1100×350 1400× Detailed Photos Product Description Jolt squeeze moulding machine is also know as jolt squeeze molding machine or even as compaction table in some area.

This squeeze molding machine is economic molding solution for manual and simply automatic green sand casting production. The structure of the machine is optimized, and the fuselage adopts a square box basket structure, which greatly improves the rigidity of the fuselage.

The machine adopts the micro-seismic compaction molding process, which can greatly increase the compaction strength so that the hardness of the sand box can reach above HB90, and the surface roughness is increased by one level to stabilize the product quality.

The shock part of the machine is equipped with a buffer spring, which effectively reduces the impact of the machine on the base. The machine mold mechanism adopts air cylinder, crank, connecting rod, and synchronous shaft to realize synchronous ejection.

The control part of this machine adopts pneumatic components to realize the overall function, simple operation and convenient maintenance. The machine is easy to operate, can see the sand mold situation, and the operating procedure can be humanized, which effectively improves productivity.

Micro-seismic compaction molding machine The structure of the machine is optimized. The body adopts a square box basket structure, which greatly improves the rigidity of the body.

The machine adopts the micro-seismic compaction molding process, which can greatly improve the compaction strength so that the hardness of the sand box can reach above HB85, and the surface roughness is increased by one level to stabilize the product quality.

The shock part of the machine adopts air cushion micro shock to effectively reduce the influence of the machine on the foundation. Th
